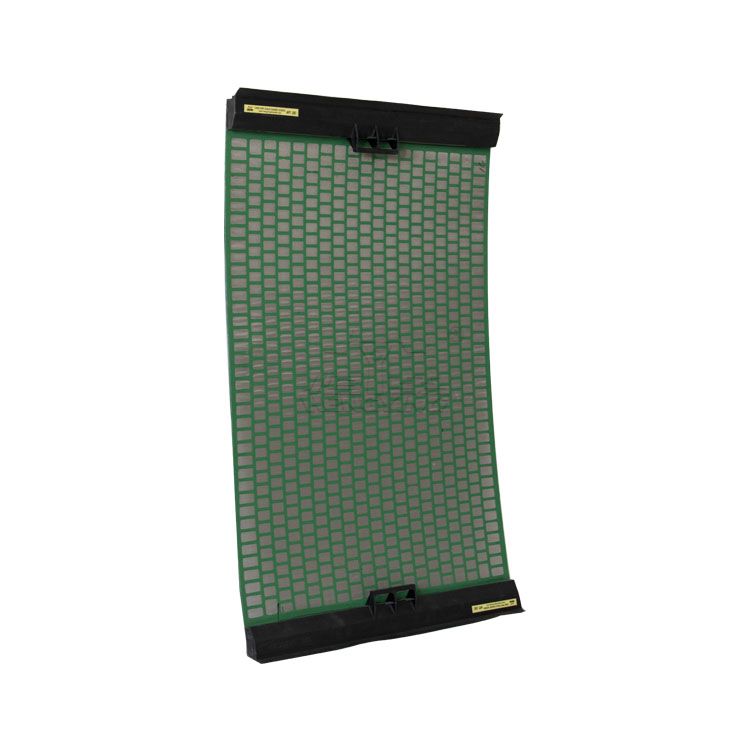

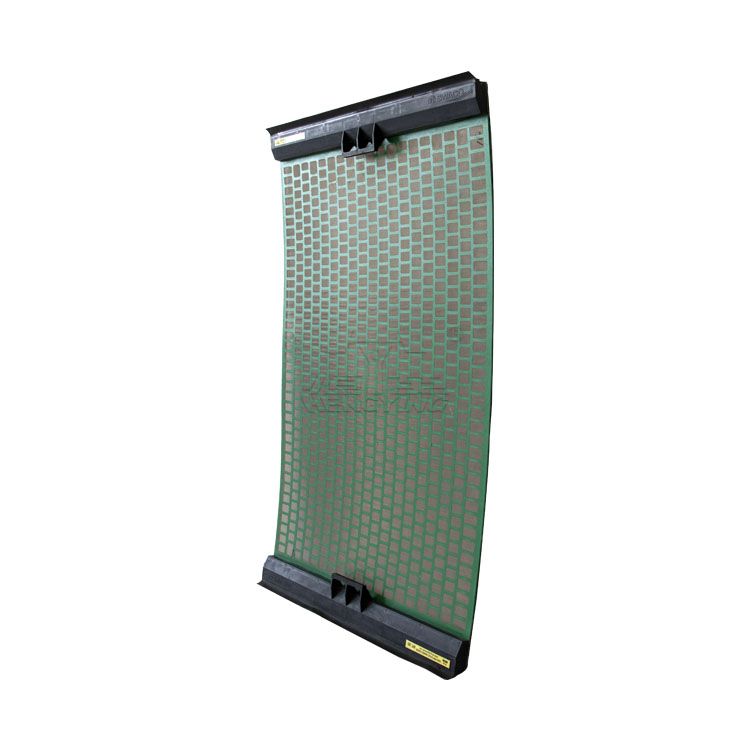

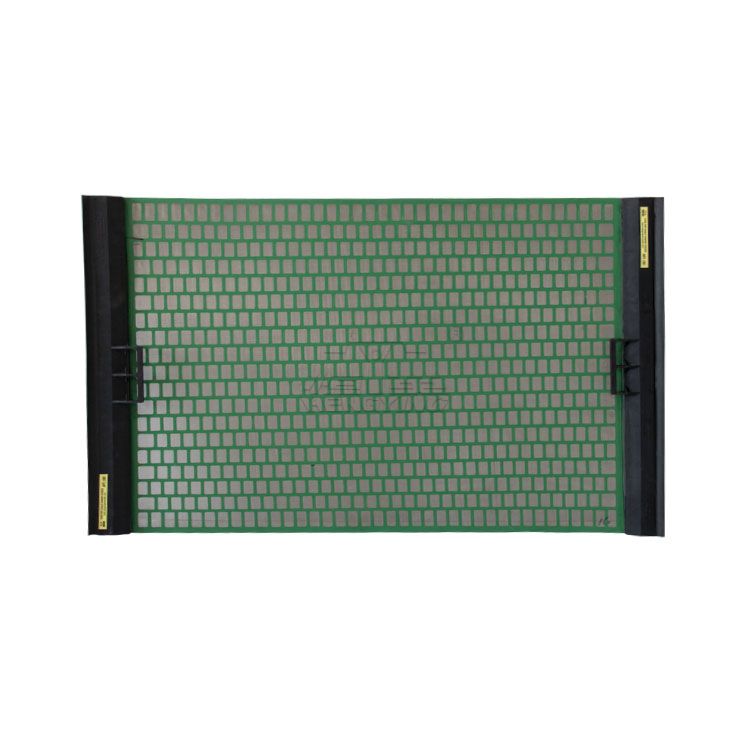

Flat shaker screen for Derrick 500 flat has three layers of SS 316 wire mesh with steel support plate bonding together tightly ,the flat shaker screens have long time using life.
PRODUCT FEATURES
Flat shaker screen for Derrick 500 flat:
1)Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better. Screen with different mesh counts with suitable opening sizes of the backing plate. Doing so, our products will obtain the largest effective area under the condition of enough strength.
2)The bottom layer with low mesh counts has coarse wire and can be tight bonded to the backing to make up one block. So the strength of whole screen mesh get up and the useful life is increased

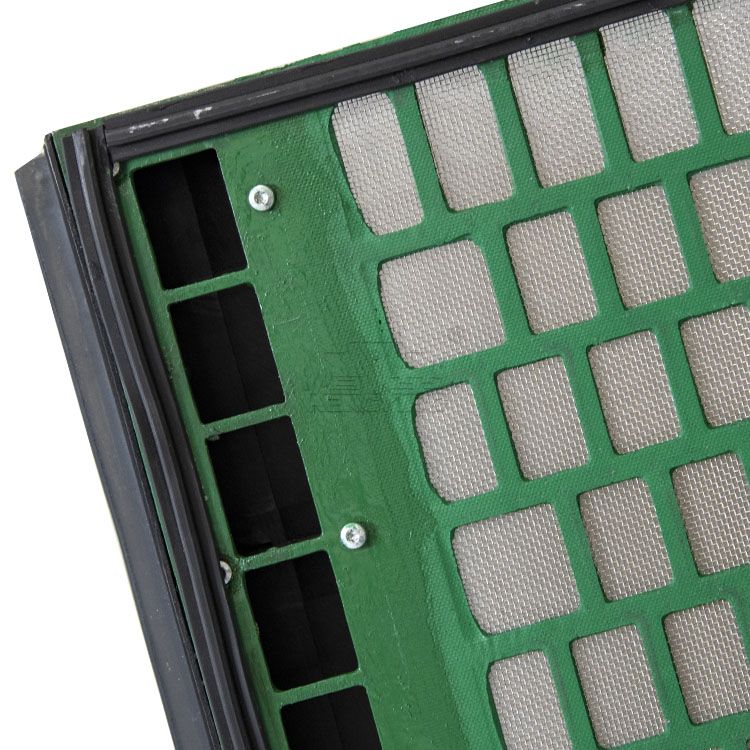

3) The mesh, divided into many independent small units by grids of the backing plate, can prevent rigs of tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damages. By doing so, the operator can cut down the stop time and reduce the cost.
| HSB-1(WAVE ®) | 20-325 | 697×1053mm | DERRICK-FLC2000(PMD) Series |
| HSB-2((WAVE ®) | 20-325 | 695×1050mm | DERRICK-FLC500(PMD) Series |
| HSB-3(WAVE ®) | 20-325 | 710×626mm | DERRICK-FLC600 (PMD) Series |
| HSB-4(WAVE ®) | 20-325 | 567×1070mm | DERRICK HYPERPOOL |
| HSP-1 | 20-325 | 697×1053mm | DERRICK-FLC2000(PWP) Series |
| HSP-2 | 20-325 | 695×1050mm | DERRICK-FLC500(PWP) Series |
| HSP-3 | 20-325 | 697× 846 mm | DERRICK-FLC313M |
API RP 13C(ISO 13501) | |
D100 Separation(Microns) | API Screen Number |
>780.0 to 925.0 | API 20 |
>655.0 to 780.0 | API 25 |
>550.0 to 655.0 | API 30 |
>462.5 to 550.0 | API 35 |
>390.0 to 462.5 | API 40 |
>327.5 to 390.0 | API 45 |
>275.0 to 327.5 | API 50 |
>231.0 to 275.0 | API 60 |
>196.0 to 231.0 | API 70 |
>165.0 to 196.0 | API 80 |
>137.5 to 165.0 | API 100 |
>116.5 to 137.5 | API 120 |
> 98.0 to 116.5 | API 140 |
> 82.5 to 98.0 | API 170 |
> 69.0 to 82.5 | API 200 |
> 58.0 to 69.0 | API 230 |
> 49.0 to 58.0 | API 270 |
> 41.5 to 49.0 | API 325 |
