HENGYING produces Shaker Screen for Replacement Derrick 500 flat, Derrick 500 wave, Derrick 2000 flat, Derrick 2000 wave and Derrick 600.
Welcome for any inquiry!
PRODUCT FEATURES

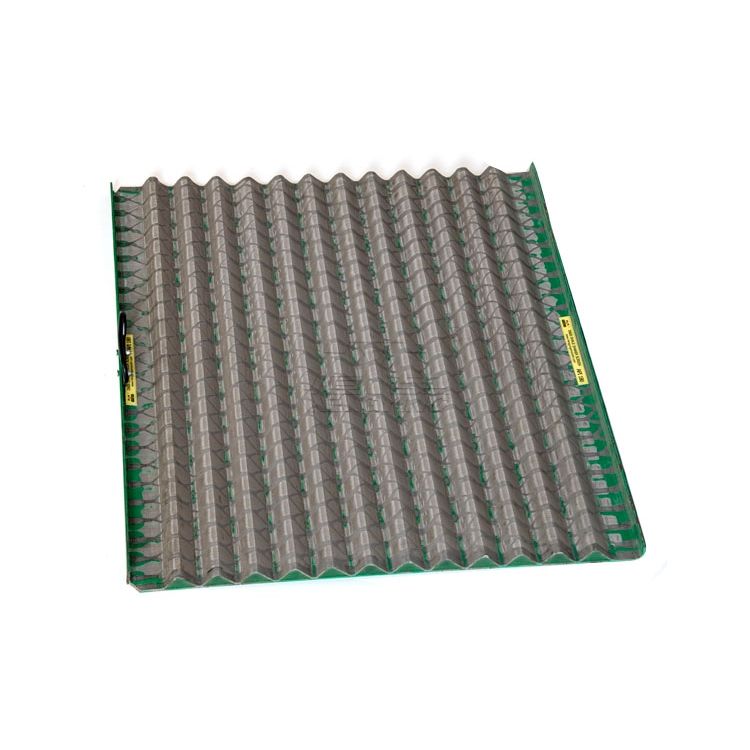

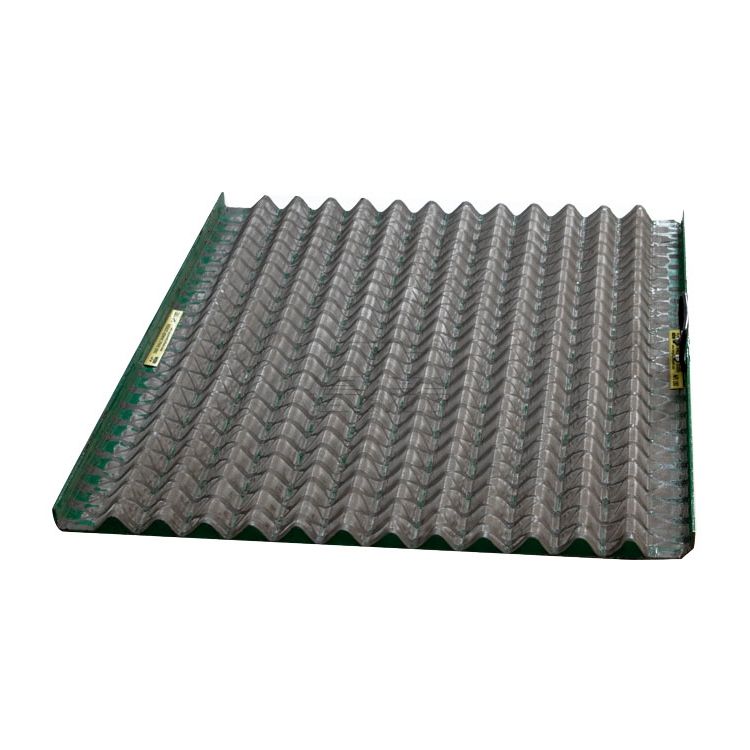

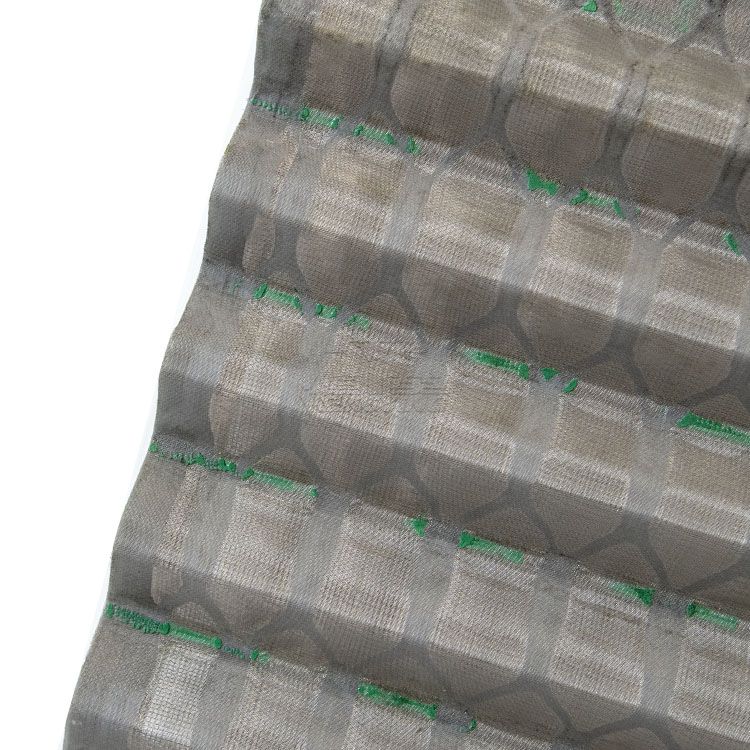

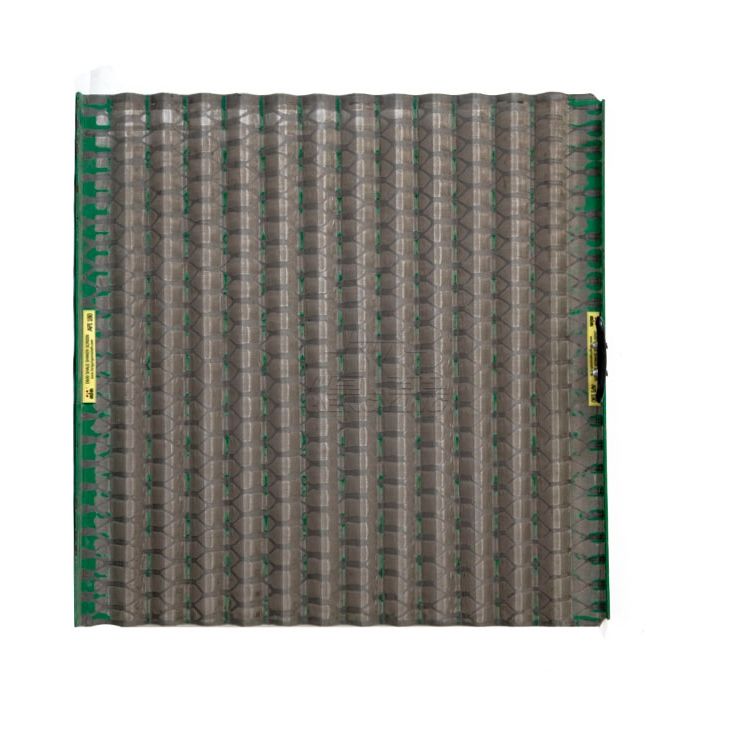

Shaker Screen for Replacement Derrick 600
We, HENGYING WIRE CLOTH CO., LTD---HENGYING COMPANY, are the biggest professional manufacturer of shale shaker screens in China.
HENGYING shale shaker sreeen has passed API RP13C, API Q1 and ISO certification.
Our factory produces Shaker Screen for Replacement Derrick 500 flat, Derrick 500 wave, Derrick 2000 flat, Derrick 2000 wave and Derrick 600.
Welcome for any inquiry!
| API RP 13C(ISO 13501) | |
| D100 Separation(Microns) | API Screen Number |
| >780.0 to 925.0 | API 20 |
| >655.0 to 780.0 | API 25 |
| >550.0 to 655.0 | API 30 |
| >462.5 to 550.0 | API 35 |
| >390.0 to 462.5 | API 40 |
| >327.5 to 390.0 | API 45 |
| >275.0 to 327.5 | API 50 |
| >231.0 to 275.0 | API 60 |
| >196.0 to 231.0 | API 70 |
| >165.0 to 196.0 | API 80 |
| >137.5 to 165.0 | API 100 |
| >116.5 to 137.5 | API 120 |
| > 98.0 to 116.5 | API 140 |
| > 82.5 to 98.0 | API 170 |
| > 69.0 to 82.5 | API 200 |
| > 58.0 to 69.0 | API 230 |
| > 49.0 to 58.0 | API 270 |
| > 41.5 to 49.0 | API 325 |
| Screen Model | Range of Mesh | Dimension (Width x Length) | Brand & Model of Shaker |
| HSB-1(WAVE ®) | 20-325 | 697×1053mm | DERRICK-FLC2000(PMD) Series |
| HSB-2((WAVE ®) | 20-325 | 695×1050mm | DERRICK-FLC500(PMD) Series |
| HSB-3(WAVE ®) | 20-325 | 710×626mm | DERRICK-FLC600 (PMD) Series |
| HSB-4(WAVE ®) | 20-325 | 567×1070mm | DERRICK HYPERPOOL |
| HSP-1 | 20-325 | 697×1053mm | DERRICK-FLC2000(PWP) Series |
| HSP-2 | 20-325 | 695×1050mm | DERRICK-FLC500(PWP) Series |
| HSP-3 | 20-325 | 697× 846 mm | DERRICK-FLC313M |
| HSZ-1/1 | 20-325 | 585×1165mm | SWACO MONGOOSE PT＆PRO |
| HSZ-3 | 20-325 | 610×660mm | SWACO MD-2＆MD-3 |
| HSP-4 | 20-325 | 903×1155mm | SWACO BEM-3 |
| HSF-1 | 20-250 | 700×1050mm | SWACO DERRICK-FLC2000 |
| HSF-2 | 20-250 | 1212×1141mm | SWACO ALS-2 |
| HSZ-2/1 | 20-325 | 635×1250mm | BRANDT KING COBRA＆COBRA |
| HSK-2 | 20-325 | 635×1253mm | BRANDT KING COBRA |
| HSK-3 | 20-325 | 940*686mm | BRANDT VSM300 Pramary |
| HSK-4 | 20-325 | 889*686mm | BRANDT VSM300 scalping |
| HSK-5 | 20-325 | 712×1180mm | BRANDT D380 |
| HSK-4 | 20-325 | 720×1220mm | KTL48 SERIES |
| HSK-6 | 20-325 | 737*1067mm | FSI 50＆500＆5000 |
| HSP-6 | 20-325 | 915×1150mm | LCM-2D |
| HSP-7 | 20-325 | 700×1165mm | S250 |
