API RP 13C(ISO 13501) | |
D100 Separation(Microns) | API Screen Number |
>780.0 to 925.0 | API 20 |
>655.0 to 780.0 | API 25 |
>550.0 to 655.0 | API 30 |
>462.5 to 550.0 | API 35 |
>390.0 to 462.5 | API 40 |
>327.5 to 390.0 | API 45 |
>275.0 to 327.5 | API 50 |
>231.0 to 275.0 | API 60 |
>196.0 to 231.0 | API 70 |
>165.0 to 196.0 | API 80 |
>137.5 to 165.0 | API 100 |
>116.5 to 137.5 | API 120 |
> 98.0 to 116.5 | API 140 |
> 82.5 to 98.0 | API 170 |
> 69.0 to 82.5 | API 200 |
> 58.0 to 69.0 | API 230 |
> 49.0 to 58.0 | API 270 |
> 41.5 to 49.0 | API 325 |

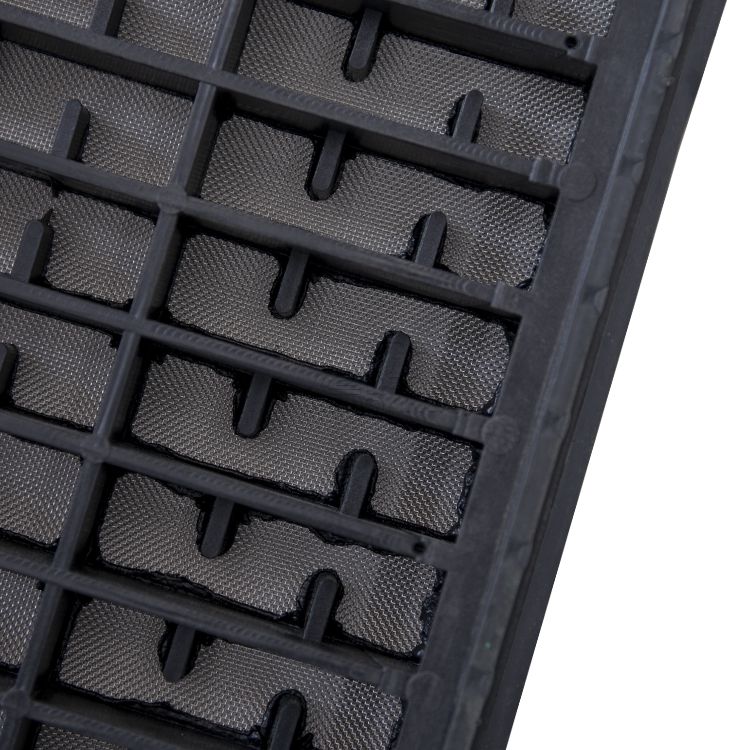

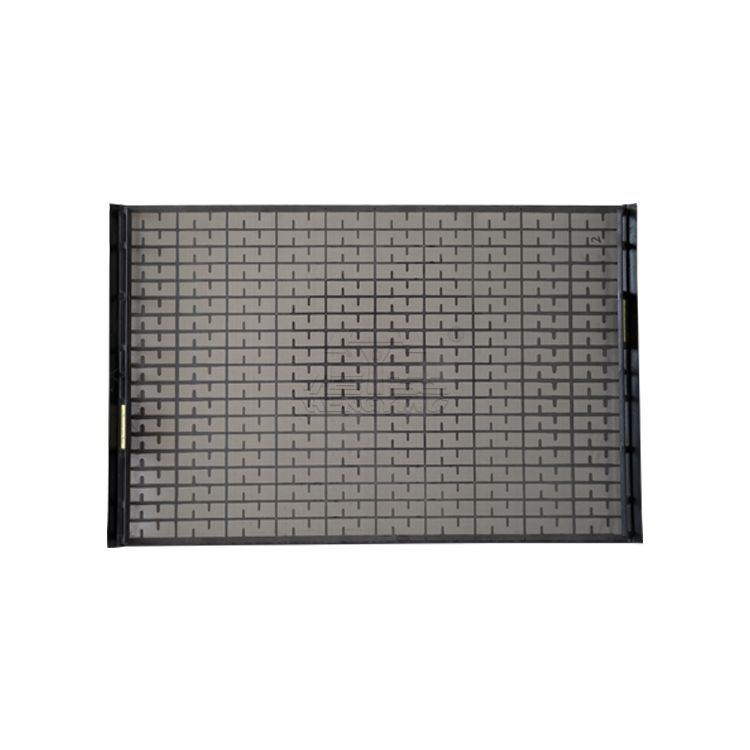

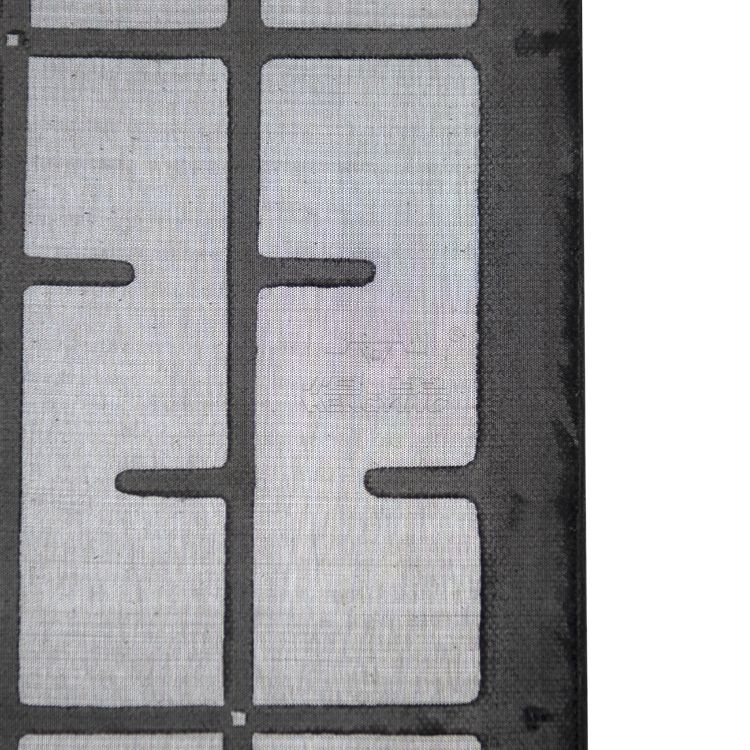

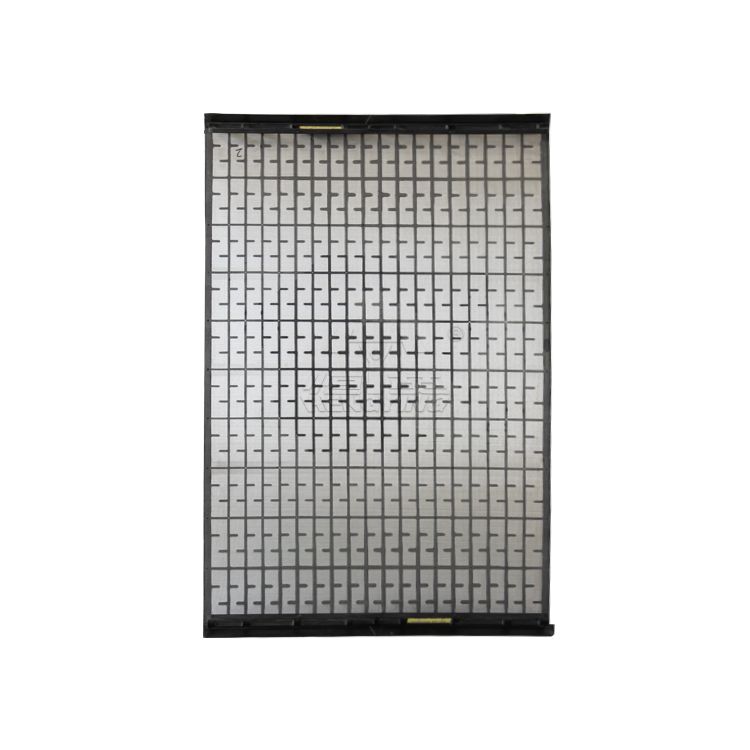

composite flat 500 shaker screen composed of 3 laryers stainless steel wire mesh and composite fram ,. it has more service life ,
PRODUCT FEATURES
We, HENGYING WIRE CLOTH CO., LTD---HENGYING COMPANY, are the biggest professional manufacturer of shale shaker screens in China.
HENGYING shale shaker sreeen has passed API RP13C, API Q1 and ISO certification.
Our factory produces D500 flat, D500 wave, D2000 flat, D2000 wave and D600.
Screen Model | Range of Mesh | Dimension (Width x Length) | Brand & Model of Shaker |
HSB-1(WAVE ®) | 20-325 | 697×1053mm | DERRICK-FLC2000(PMD) Series |
HSB-2((WAVE ®) | 20-325 | 695×1050mm | DERRICK-FLC500(PMD) Series |
HSB-3(WAVE ®) | 20-325 | 710×626mm | DERRICK-FLC600 (PMD) Series |
HSB-4(WAVE ®) | 20-325 | 567×1070mm | DERRICK HYPERPOOL |
HSP-1 | 20-325 | 697×1053mm | DERRICK-FLC2000(PWP) Series |
HSP-2 | 20-325 | 695×1050mm | DERRICK-FLC500(PWP) Series |
HSP-3 | 20-325 | 697× 846 mm | DERRICK-FLC313M |
API RP 13C(ISO 13501) | |
D100 Separation(Microns) | API Screen Number |
>780.0 to 925.0 | API 20 |
>655.0 to 780.0 | API 25 |
>550.0 to 655.0 | API 30 |
>462.5 to 550.0 | API 35 |
>390.0 to 462.5 | API 40 |
>327.5 to 390.0 | API 45 |
>275.0 to 327.5 | API 50 |
>231.0 to 275.0 | API 60 |
>196.0 to 231.0 | API 70 |
>165.0 to 196.0 | API 80 |
>137.5 to 165.0 | API 100 |
>116.5 to 137.5 | API 120 |
> 98.0 to 116.5 | API 140 |
> 82.5 to 98.0 | API 170 |
> 69.0 to 82.5 | API 200 |
> 58.0 to 69.0 | API 230 |
> 49.0 to 58.0 | API 270 |
> 41.5 to 49.0 | API 325 |
