Dutch Wire Cloth

Dutch Weave Wire Mesh is made of high quality stainless steel wire woven.

PRODUCT FEATURES

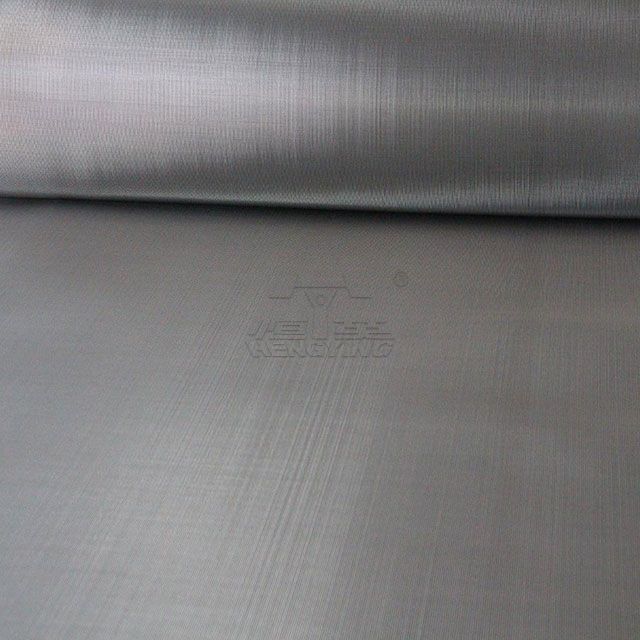

Dutch Weave Wire Mesh

Dutch Weave Wire Mesh is made of high quality stainless steel wire woven. The main feature is the warp and weft wire diameter and density of greater contrast, and therefore the net thickness and filtering accuracy and life will have a more significant increase than the average square mesh.

Widely used petroleum, chemical, fiber, rubber, metallurgy, medicine, food and other industries.

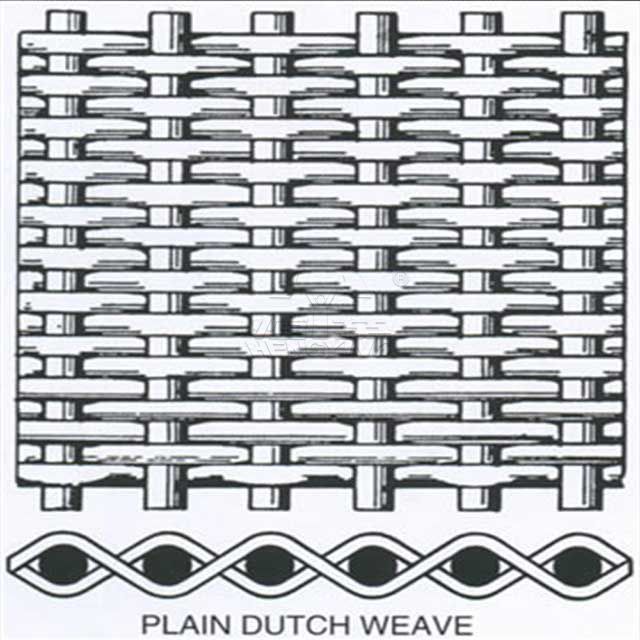

Plain Dutch Weave Wire Mesh
 NoMesh/inch(WarpXWeft)

Diameter

(Warp X Weft)

Aperture

(μm)

Weight

(kg/m2 )

32#8×620.63mm×0.45mm3005.42
40#10×790.50mm×0.355mm2503.16
48#12×640.58mm×0.40mm2802.90
55#14×880.40mm×0.30mm1802.54
76#19×1400.315mm×0.20mm1401.88
80#20×3000.35mm×0.20mm3.6
95#24×1100.355mm×0.25mm1202.45
100#25×1400.28mm×0.20mm1001.95
120#30×1500.25mm×0.18mm801.68
140#35×1750.224mm×0.16mm711.52
160#40×2000.20mm×0.14mm601.40
180#45×2500.16mm×0.112mm561.09
200#50×2500.14mm×0.112mm531.04
220#55.5×2800.14mm×0.10mm500.92
240#65×3300.11mm×0.08mm360.71
280#(1)70×3500.11mm×0.08mm350.72
280#(2)70×3850.11mm×0.07mm320.75
300#78×7000.11mm×0.08mm301.39
315#(1)80×4000.10mm×0.065mm400.62
315#(2)80×6000.10mm×0.06mm
315#(3)80×8000.10mm×0.04mm
320#81×7800.10mm×0.07mm301.22
354#90×5500.12mm×0..05mm
Roll width 1m-6m

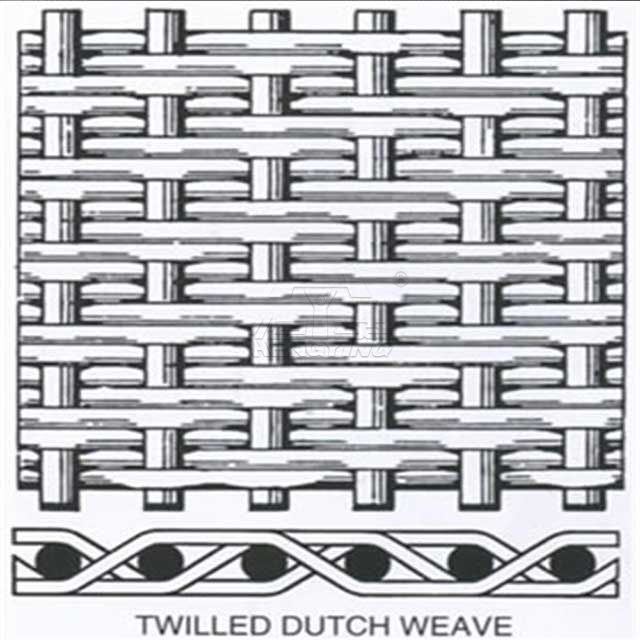

  Twill Dutch Weave Wire Mesh
NoMesh/inch(WarpXWeft)

Diameter

(Warp Xweft)

μmApertureKg/m2
360#91×7870.10mm×0.07mm251.24
400#101×9000.10mm×0.063mm201.22
472#120×4000.10mm×0.075mm
500#127×11000.07mm×0.05mm170.81
630#160×15000.063mm×0.04mm150.62
650#(1)165×4000.07mm×0.06mm
650#(2)165×6000.07mm×0.05mm
650#(3)165×8000.07mm×0.05mm25
650#(4)165×11000.07mm×0.045mm
650#(5)165×14000.07mm×0.04mm160.76
685#174×17000.063mm×0.032mm130.61
787#(1)200×6000.07mm×0.06mm
787#(2)200×8000.07mm×0.05mm
787#(3)200×14000.07mm×0.04mm120.8
795#202×17600.05mm×0.032mm100.6
850#216×18600.045mm×0.030mm90.5
1000#254×20000.04mm×0.028mm8
1125#285×22350.036mm×0.025mm7
1228#312×21000.035mm×0.025mm
1250#318×22350.035mm×0.025mm
1280#325×23000.035mm×0.025mm50.45
1575#400×31000.035mm×0.019mm3
Roll width 1m-1.6m
